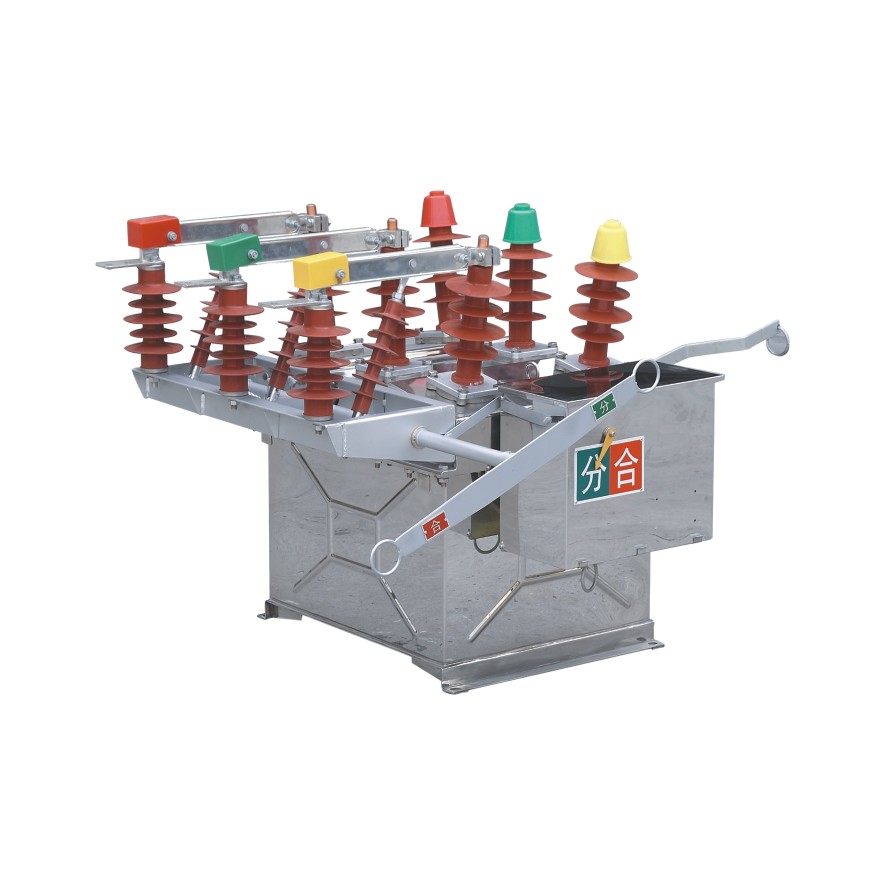

The vacuum interrupter is used, the air is insulated, and the electric spring operating mechanism is used to make the product have strong arc extinguishing ability, many short circuit breaking times, no fire and explosion hazard, convenient operation, and is a product with excellent performance and practicability. The overall structure of the product adopts three-phase common box type, the casing enters and exits the line, the inside of the box is dry air, and the electric spring operating mechanism is arranged on the side of the box body, which can be reliably used under harsh environmental conditions. The vacuum interrupter of this product adopts ceramic shell, cup-shaped longitudinal magnetic field contact structure and copper-chromium contact material, which has excellent breaking and closing short-circuit current capability. The product is small in size, light in weight and beautiful in appearance. The vacuum interrupter and the insulating support sleeve are compact in design, and the outlet conductive rod is externally coated with silicone rubber to adapt to harsh weather conditions and dirty environments.

Technical Information

Overall and installation dimensions
