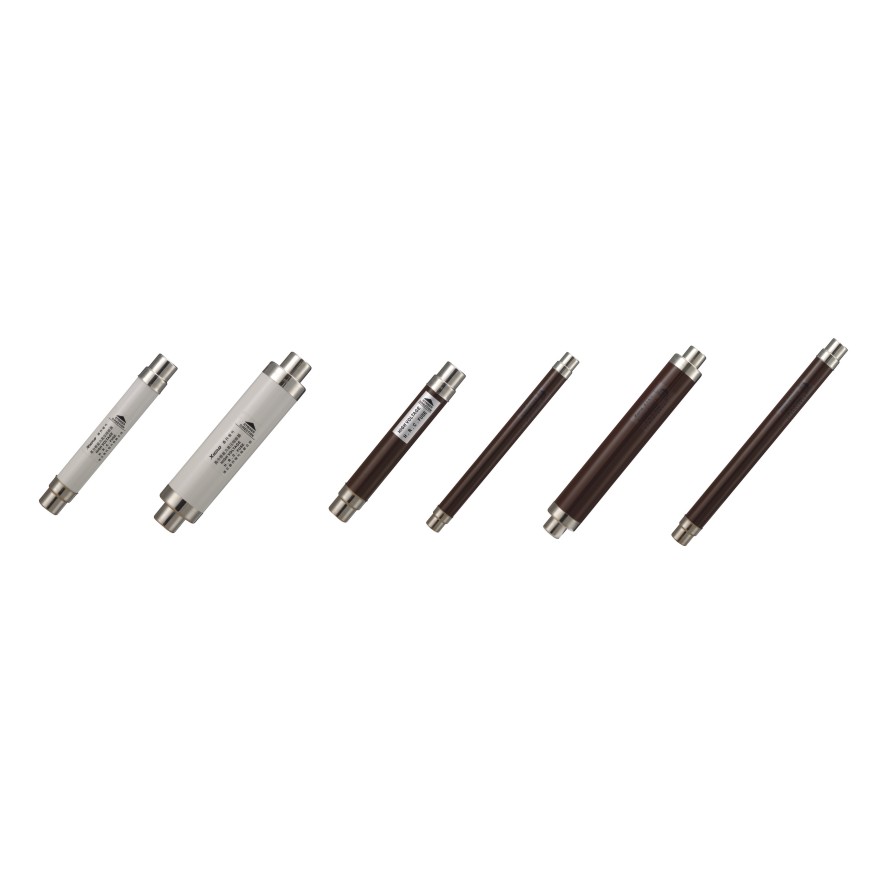

This product is suitable for indoor AC 50Hz system with rated voltage of 3.6kV, 7.2kV, 12kV, 24kV and 40.5kV. It can be used in conjunction with other switching appliances such as load switches and vacuum contactors as short circuit and overload protection components of power transformers and other equipment, as well as high voltage switching frame, ring network frame and high/low voltage pre-installed substation. Station necessary supporting products.
Technical Information
Technical Specification |
|
|
|
|
|
Model | XRNT1-12 | XRNT1-12 | XRNT1-12 | XRNT1-24 | XRNT1-40.5 |
Equivalent model | SDLAJ | SFLAJ | SXLAJ |
|
|
Rated voltage (kV) | 12 | 12 | 12 | 24 | 40.5 |
Fuse rated current (A) | 40 | 125 | 200 | 200 | 100 |
Melt Rated Current (A) | 3.15、6.3、10、 16、20、25、 31.5、40 | 50、63、71、80、100、125 | 160、200 | 3.15、6.3、10、16、20、25、31.5、40、50、63、80、 100、125、160、200 | 3.15、6.3、10、 16、20、25、31.540、50、63、100、 |
Turn-on Current (kA) | 50 | 50 | 50 | 50 | 40 |

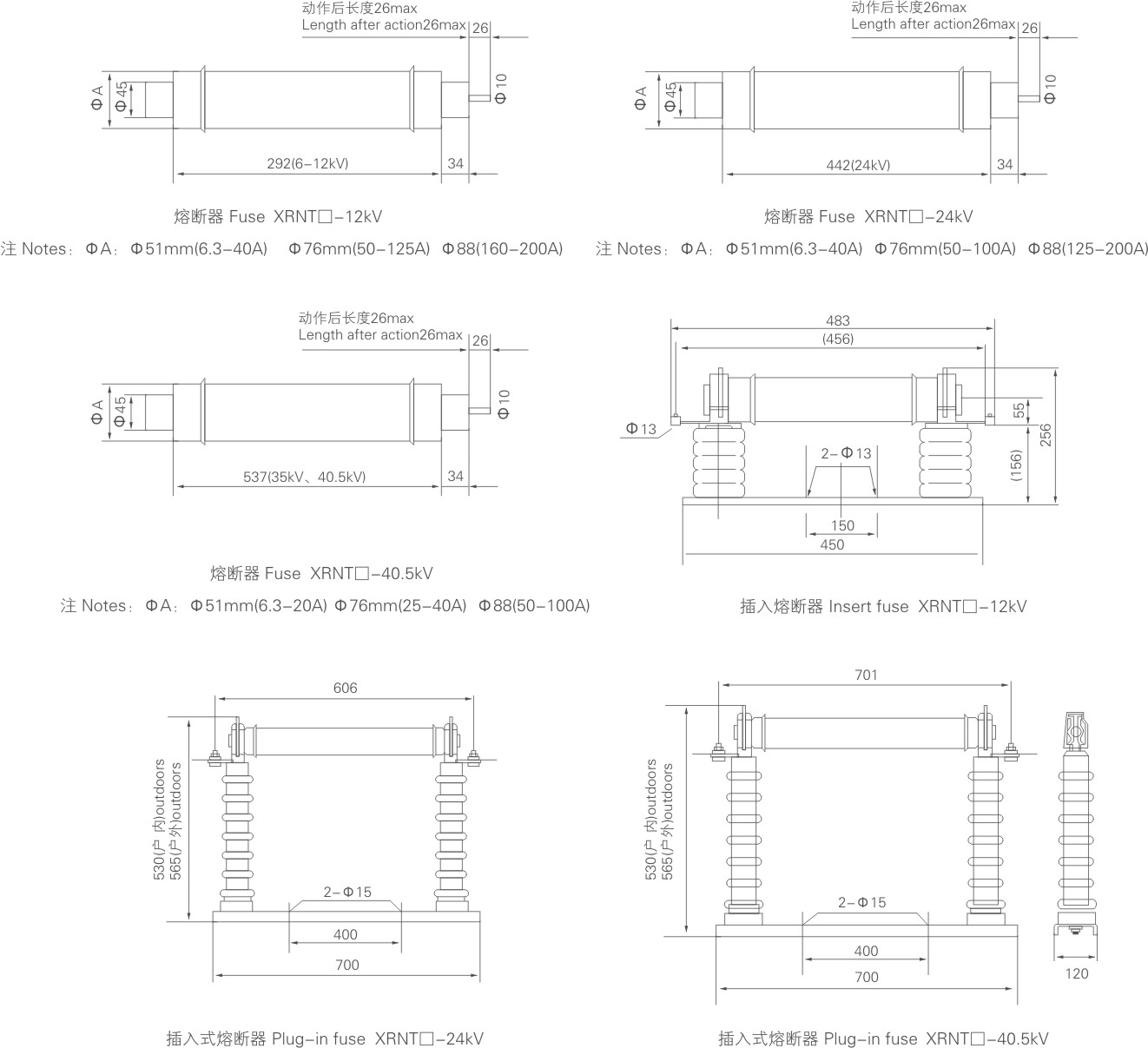

Overall and installation dimensions
